Technical specifications

300 - 1250 gpm

Al Aman horizontal split-case fire pumps are designed in full compliance with UL 448 safety standards & FM, ensuring certified operational safety and reliable performance.

These pumps provide high flow rates, excellent efficiency, stable operation, low noise, and long service life. Engineered for ease of installation and maintenance, HSC pumps deliver dependable performance across a wide range of demanding fire protection and industrial applications.

Download Brochure

OUR RANGES

SL No.	Rated Capacity, US GPM	Size, In.	Model	Pressure Rating, psi	Approx Speed RPM
1	300	6 X 4	FK150-310	142 - 232	2950
2	300	6 X 4	FK150-310	147 - 240	3000
3	400	6 X 4	FK150-310	139 - 232	2950
4	400	6 X 4	FK150-310	144 - 240	3000
5	500	6 X 4	FK150-310	139 - 232	2950
6	500	6 X 4	FK150-310	144 - 240	3000
7	500	8 X 5	FK150-290	141 - 190	2950
8	500	8 X 5	FK150-290	145 - 196	3000
9	500	8 X 5	FK150-290	202 - 234	3550
10	750	6 X 4	FK150-310	132 - 231	2950
11	750	6 X 4	FK150-310	137 - 239	3000
12	750	8 X 5	FK150-290	139 - 188	2950
13	750	8 X 5	FK150-290	144 - 194	3000
14	750	8 X 5	FK150-290	201 - 235	3550
15	1000	8 X 5	FK150-290	138 - 187	2950
16	1000	8 X 5	FK150-290	143 - 193	3000
17	1000	8 X 5	FK150-290	199 - 232	3550
18	1250	8 X 5	FK150-290	138 - 184	2950
19	1250	8 X 5	FK150-290	137 - 191	3000

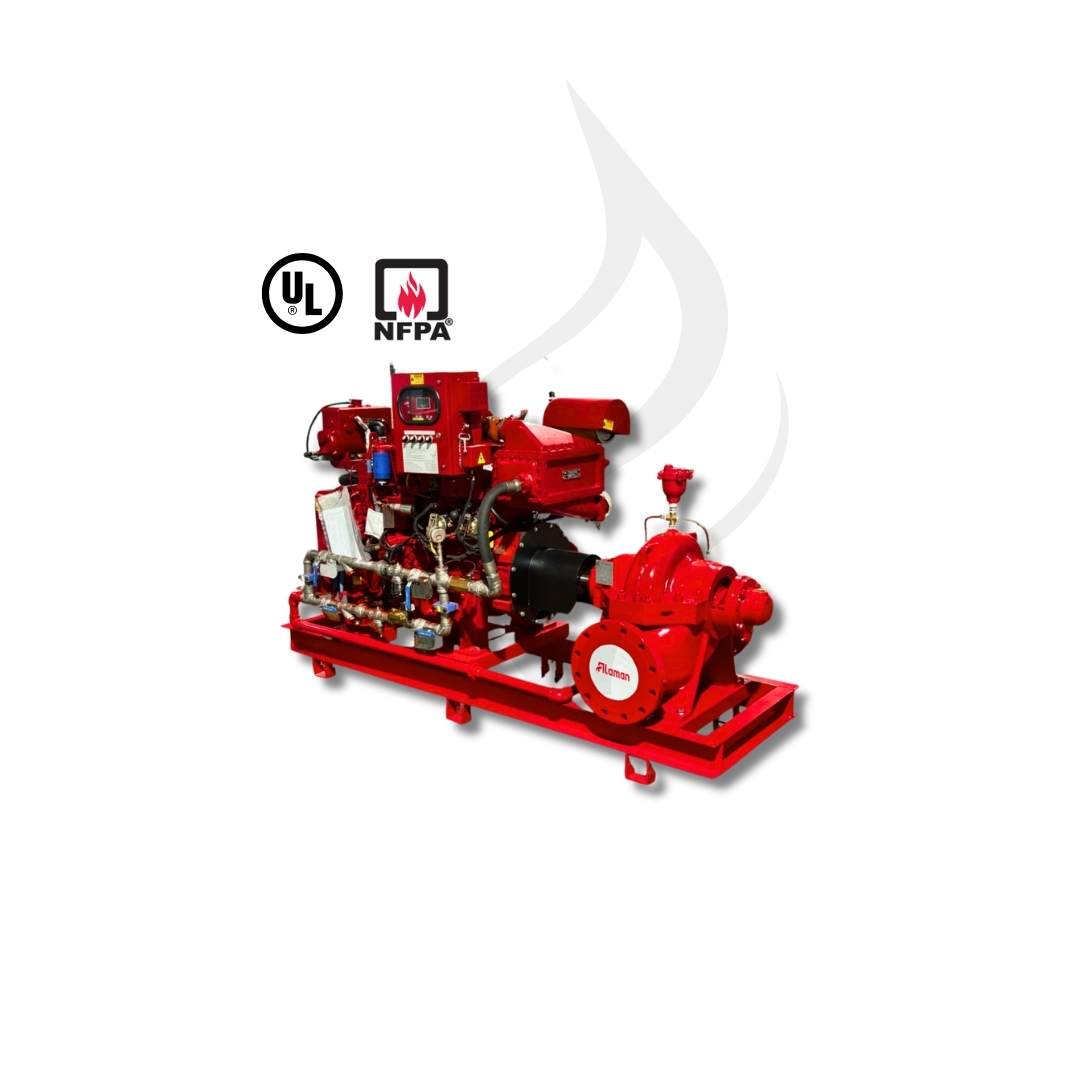

HORIZONTAL SPLIT CASE DIESEL DRIVEN SKIDS

Al Aman horizontal split case diesel-driven skids are engineered for reliable, durable fire pump operation. They feature approved horizontal split case fire pumps coupled with diesel engines on a compact, corrosion-resistant skid. Each package is precisely aligned, thoroughly inspected, and built with high-quality materials to ensure dependable performance, easy installation, and suitability for retrofit and space-limited applications.

Designed for safety, efficiency, long service life, and dependable performance.

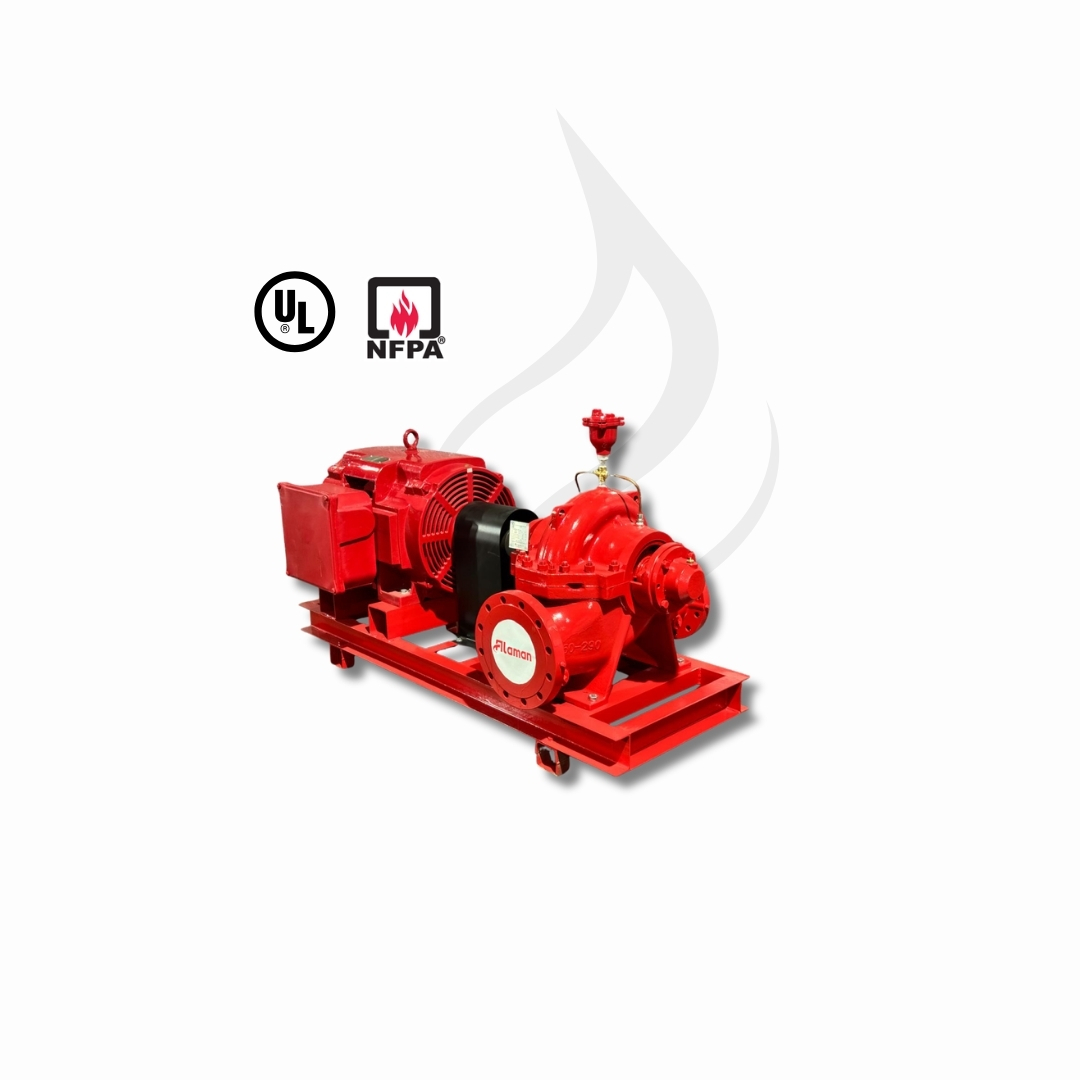

MOTOR HORIZONTAL SPLIT CASE SKIDS UL LISTED

Al Aman horizontal split case electric-driven skids are engineered for reliable, durable fire pump operation. They feature approved horizontal split case fire pumps coupled with electric motors on a compact, corrosion-resistant skid. Each package is precisely aligned, pre-tested, thoroughly inspected, and built with high-quality materials to ensure dependable performance, easy installation, and suitability for retrofit and space-limited applications.

Designed for safety, efficiency, service life, and dependable performance.
